Spring的藝術(六):一文搞定Spring整合Mybatis
技術標籤:《框架的藝術》系列mybatisspringjavamysql
聽說微信搜尋《Java魚仔》會變更強哦!
本文收錄於JavaStarter ,裡面有我完整的Java系列文章,學習或面試都可以看看哦
(一)概述
有個專門的專案可以用來整合Spring和Mybatis,這裡還是先放上官網:
http://mybatis.org/spring/zh/index.html

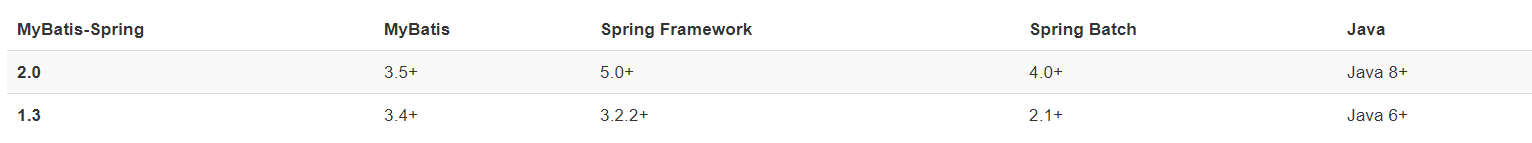

MyBatis-Spring 會幫助你將 MyBatis 程式碼無縫地整合到 Spring 中,首先需要確定版本:
在這裡會用最新的版本去做這個整合。
(二)Spring整合Mybatis操作
2.1 引入依賴
在這裡我會用spring-jdbc代替mybatis的資料來源,因此額外引入了一個spring-jdbc的依賴,其餘就是Spring相關依賴和Mybatis相關依賴以及最重要的mybatis-spring
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.4</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
< version>5.1.46</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.4</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.2.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.2.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
2.2 專案準備
我這裡只搭建一個最簡單的專案框架,包含一個使用者的實體類,以及一個UserMapper介面和UserMapper.xml檔案:
public class User {
private int id;
private String name;
//省略構造方法、get、set、toString
}
UserMapper
public interface UserMapper {
List<User> getUserList();
}
UserMapper.xml
<?xml version="1.0" encoding="UTF8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.javayz.mapper.UserMapper">
<select id="getUserList" resultType="com.javayz.pojo.User">
select * from user;
</select>
</mapper>
2.3 配置mybatis-config.xml
由於Spring和Mybatis整合後,mybatis-config甚至可以被spring的配置檔案所代替,但是為了演示,我依舊會建立這個配置檔案:
<?xml version="1.0" encoding="UTF8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!--每個mapper.xml都需要在mybatis配置檔案中進行配置-->
<mappers>
<mapper resource="com/javayz/mapper/UserMapper.xml"/>
</mappers>
</configuration>
2.4 配置Spring-mybatis配置檔案
這個檔案是spring-mybatis的核心配置檔案spring.xml
<?xml version="1.0" encoding="UTF8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<!--DataSource由Spring管理資料來源-->
<bean id="datasource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&useUnicode=true&characterEncoding=UTF-8"/>
<property name="username" value="root"/>
<property name="password" value="123456"/>
</bean>
<!--配置SqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="datasource"/>
<!--繫結Mybatis配置檔案-->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!--配置sqlSessionTemplate-->
<bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
<constructor-arg index="0" ref="sqlSessionFactory"/>
</bean>
</beans>
這個配置檔案中主要會配置三個東西:DataSource資料來源、SqlSessionFactory、SqlSessionTemplate
DataSource資料來源就不用多講了,和Mybatis一樣。
在 MyBatis-Spring 中,可使用 SqlSessionFactoryBean來建立 SqlSessionFactory,並給他配置資料來源、繫結Mybatis配置檔案等。
SqlSessionTemplate是sqlSesson的一個實現,他可以完全代替我們前面所使用的sqlSesson。SqlSessionTemplate 是執行緒安全的,可以被多個 DAO 或對映器所共享使用。
2.5 使用SqlSessionTemplate
我們建立一個UserMapper的實現類UserMapperImpl:
public class UserMapperImpl implements UserMapper {
private SqlSessionTemplate sqlSessionTemplate;
public void setSqlSessionTemplate(SqlSessionTemplate sqlSessionTemplate) {
this.sqlSessionTemplate = sqlSessionTemplate;
}
public List<User> getUserList() {
UserMapper mapper = sqlSessionTemplate.getMapper(UserMapper.class);
return mapper.getUserList();
}
}
只需要在程式碼中引入SqlSessionTemplate,就可像SqlSession一樣使用它。
建立完成之後記得注入到Spring中,為了把配置和其他的Bean注入分開,我們建立一個applicationContext.xml來統一管理配置檔案:
<?xml version="1.0" encoding="UTF8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<import resource="spring.xml"/>
<bean id="userMapper" class="com.javayz.mapper.UserMapperImpl">
<property name="sqlSessionTemplate" ref="sqlSessionTemplate"/>
</bean>
</beans>
2.6 測試
@org.junit.Test
public void test(){
ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
UserMapper userMapper = (UserMapper) context.getBean("userMapper");
System.out.println(userMapper.getUserList());
}
直接呼叫mapper即可,不用再像Mybatis一樣先建立SqlSessionFactory,再建立SqlSession。
(三)使用SqlSessionDaoSupport再簡化
有沒有覺得前面使用SqlSessionTemplate還是有些麻煩,官方給我們提供了更加簡單的方式。
使用SqlSessionDaoSupport的話spring-mybatis這個配置檔案就不需要再配置SqlSessionTemplate了
<?xml version="1.0" encoding="UTF8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<!--DataSource由Spring管理資料來源-->
<bean id="datasource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&useUnicode=true&characterEncoding=UTF-8"/>
<property name="username" value="root"/>
<property name="password" value="123456"/>
</bean>
<!--配置SqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="datasource"/>
<!--繫結Mybatis配置檔案-->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
</beans>
然後我們新建一個UserMapperImpl2,它需要繼承SqlSessionDaoSupport ,然後直接用getSqlSession()獲取到SqlSession即可。
public class UserMapperImpl2 extends SqlSessionDaoSupport implements UserMapper {
public List<User> getUserList() {
return getSqlSession().getMapper(UserMapper.class).getUserList();
}
}
最後注入Bean,需要注入sqlSessionFactory屬性:
<bean id="userMapper2" class="com.javayz.mapper.UserMapperImpl2">
<property name="sqlSessionFactory" ref="sqlSessionFactory"/>
</bean>
最後測試後獲得同樣的結果。
(四)總結
到這裡差不多把Spring的基本使用都講完了,後續會講一些面試中常考的比較難的知識點,有興趣可以關注一下。
